Ring of Fire — Visual Datos

The Philippines sits on one of the most seismically active arcs on earth. In 2024 alone, 18,139 earthquakes were recorded — roughly 50 a day. Most go unfelt. Some reshape coastlines. This piece makes that relentless drumbeat of tectonic activity visible.

The challenge was scale: 18,000 points is too many for SVG without noticeable lag. Canvas handles it cleanly. Five scrollytelling steps move through five different framings of the same dataset — from raw scatter by magnitude, to geographic Mercator projection — each revealing a different dimension of the story.

Canvas animation showing 18,139 earthquakes transitioning between visualization states — All 18,139 earthquakes from 2024 — each point animated through five data views as the user scrolls.

Mercator projection showing earthquake distribution around Philippine fault lines — The geographic view — earthquake density maps directly onto the Philippine fault system and the Pacific Rim arc.

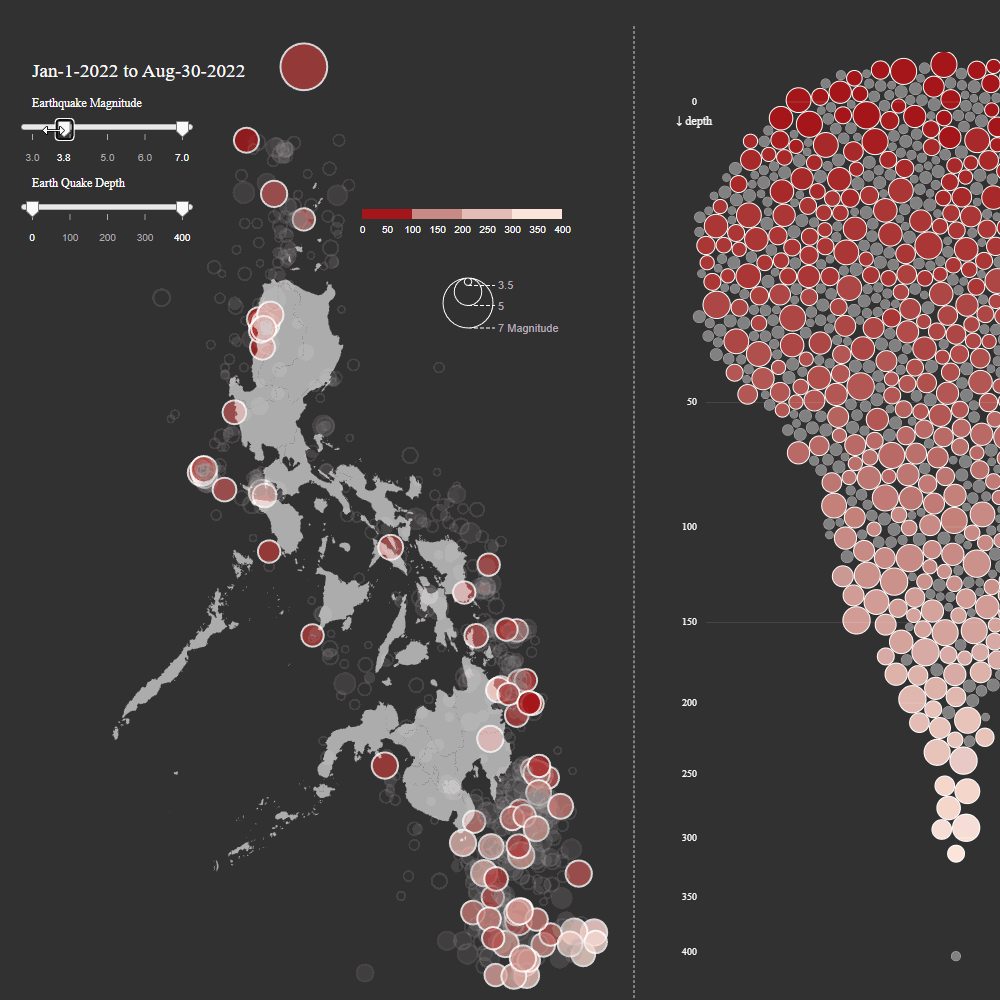

Animated transition between magnitude scatter and geographic map — The scatter-to-map transition — GSAP interpolates 18K points simultaneously at 60fps using typed Float32Array buffers.

Technical Approach

18,139 points in SVG would stutter. The solution is a Canvas 2D context with DPR scaling, typed array buffers (Float32Array for coordinates, Uint8ClampedArray for ImageData), and GSAP tweens running at 60fps. A seeded LCG random number generator keeps jitter stable across resizes. D3’s geoMercator handles the final geographic projection.

Highlights

Canvas 2D with DPR scaling — crisp rendering at any resolution

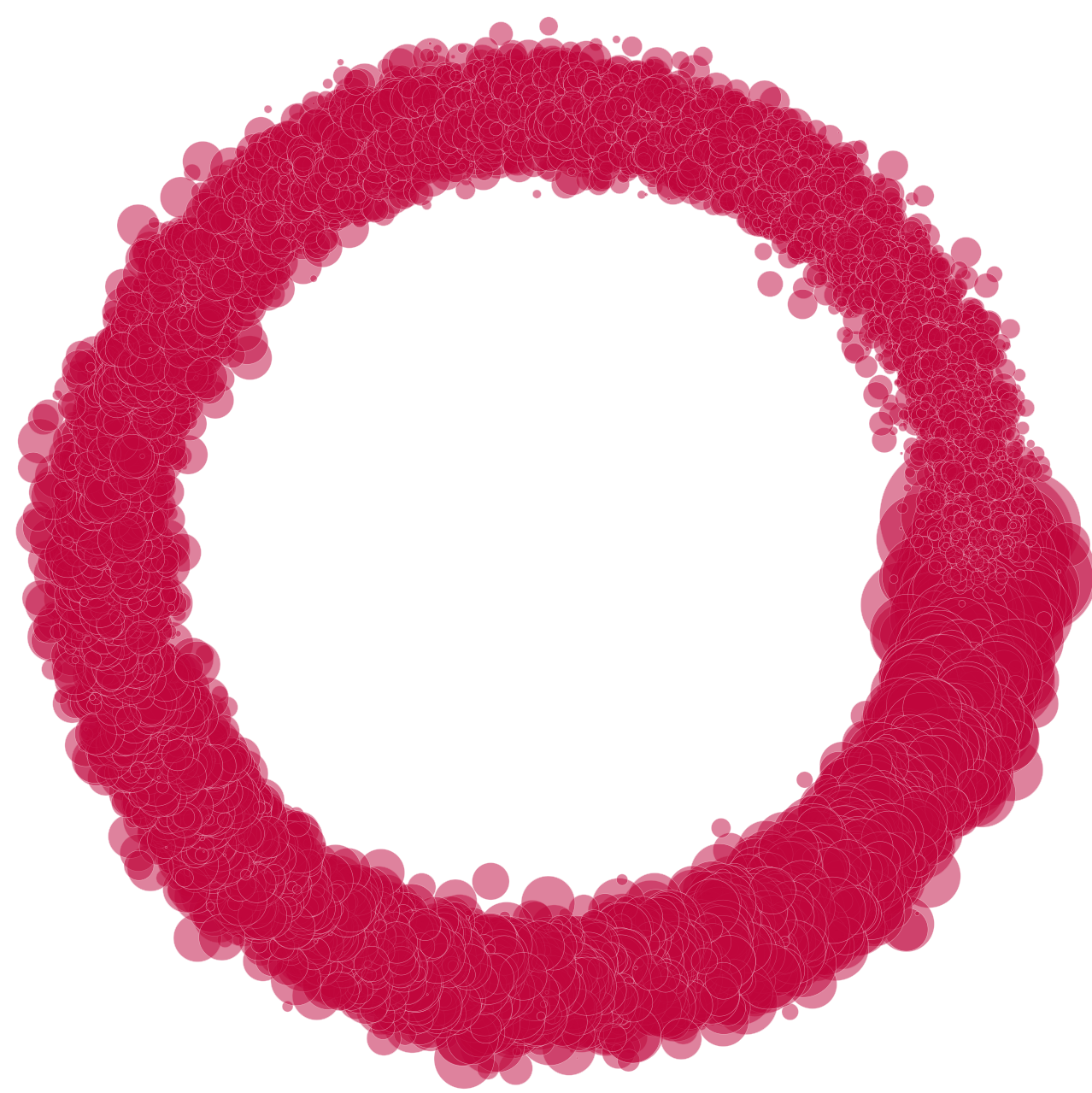

Five layout states: ring, grid, sorted grid, magnitude grid, Mercator map
GSAP time-based tweens interpolate all 18K points per frame
Seeded jitter via d3.randomLcg(42) — positions stay stable on resize
5.7MB original JSON compacted to 367KB using array-of-arrays format
